Speed

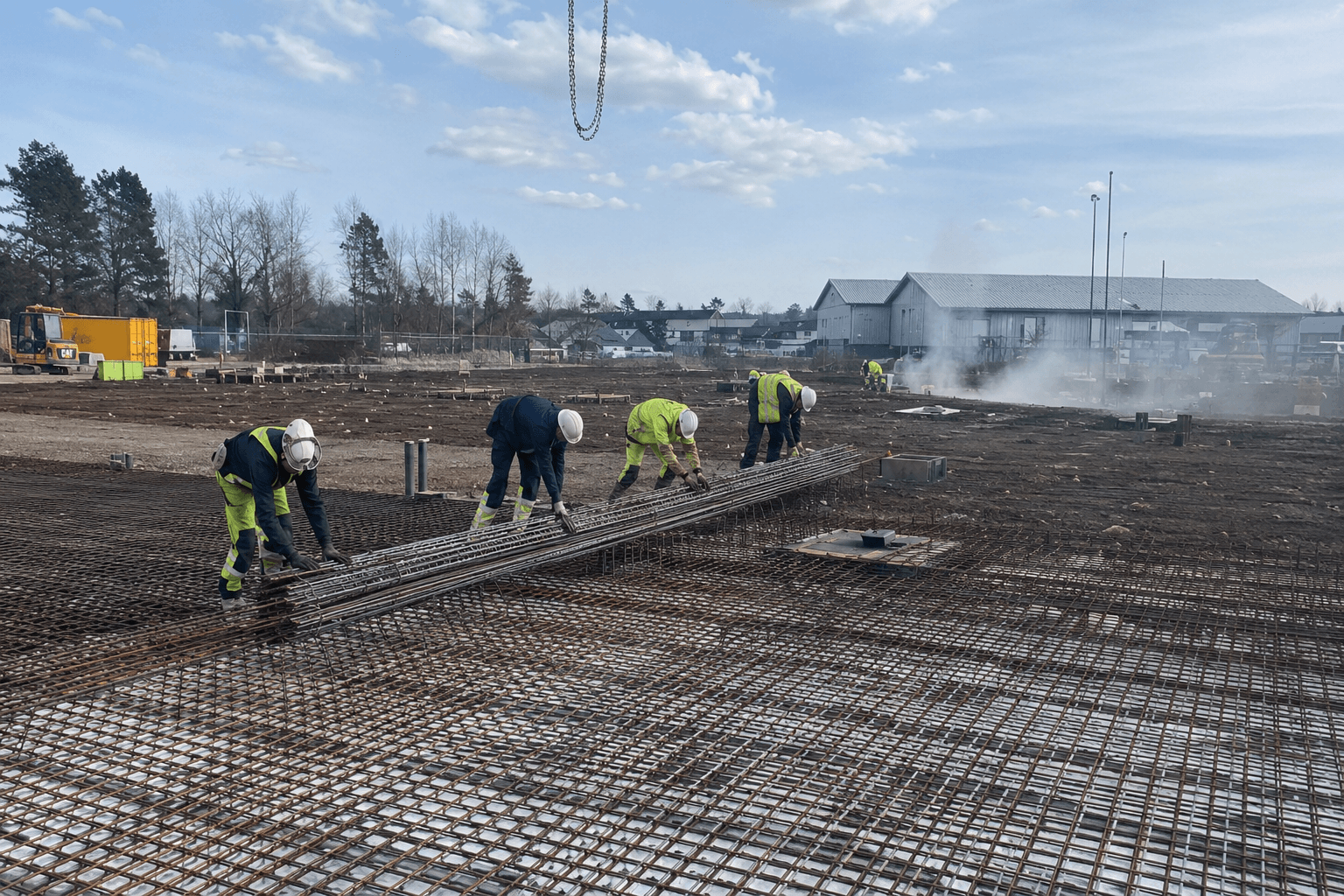

Significantly faster installation on site thanks to pre-fabricated roll mats in custom sizes. Up to 80% time savings compared to laying welded mesh or loose rebar.
Spinmaster by SteelMaster Engineering
Weld-free roll mats for efficient on-site installation.
Ideal for slabs, floors, and walls. Fast, flexible, safe.
Spinmaster by SteelMaster Engineering. Rebbots represents Spinmaster in Spain and other markets.
Technology

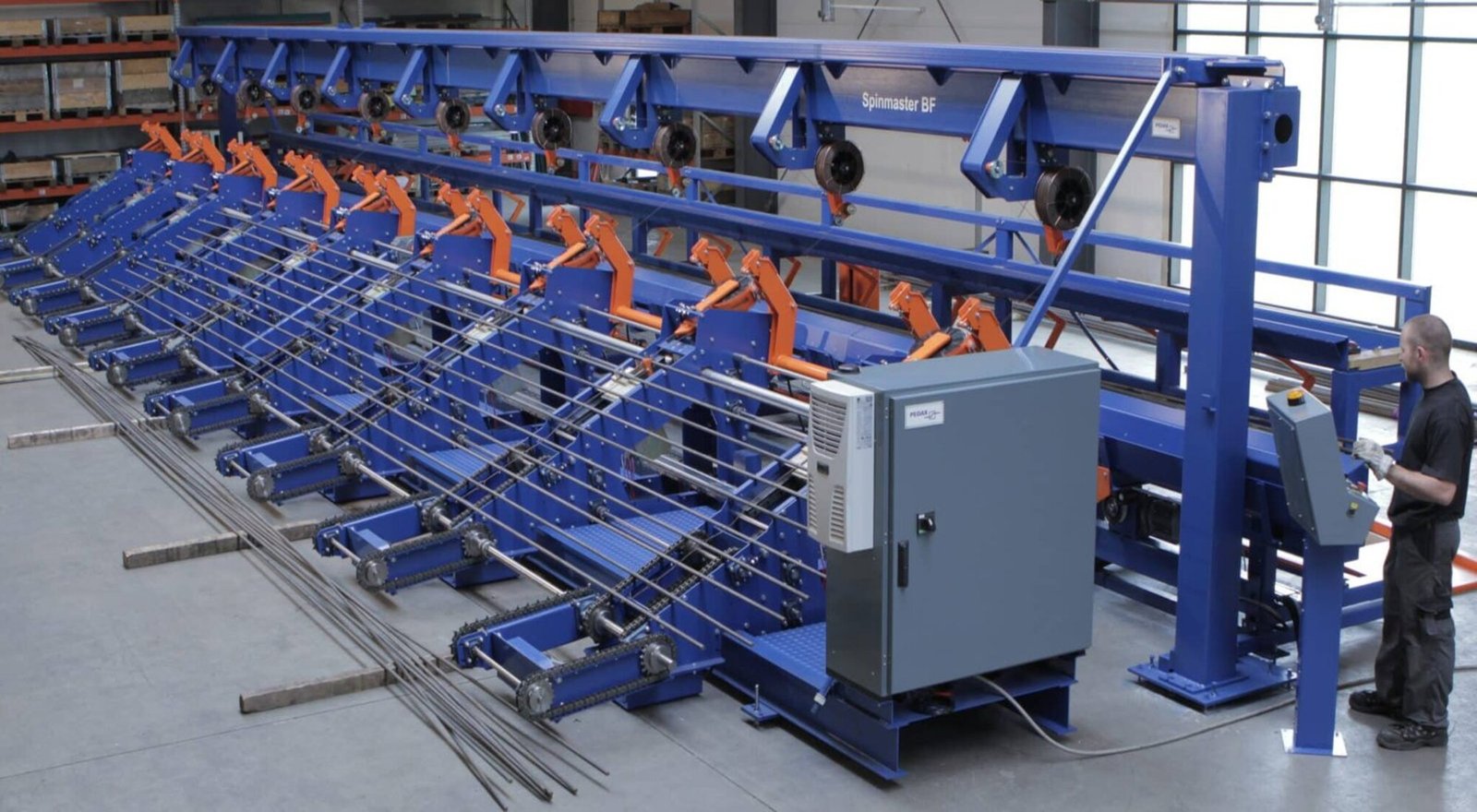

Patented weld-free technology.
Spinmaster is the only machine in the world that produces rebar roll mats without heat or welding, using mechanical twisting of the bars.

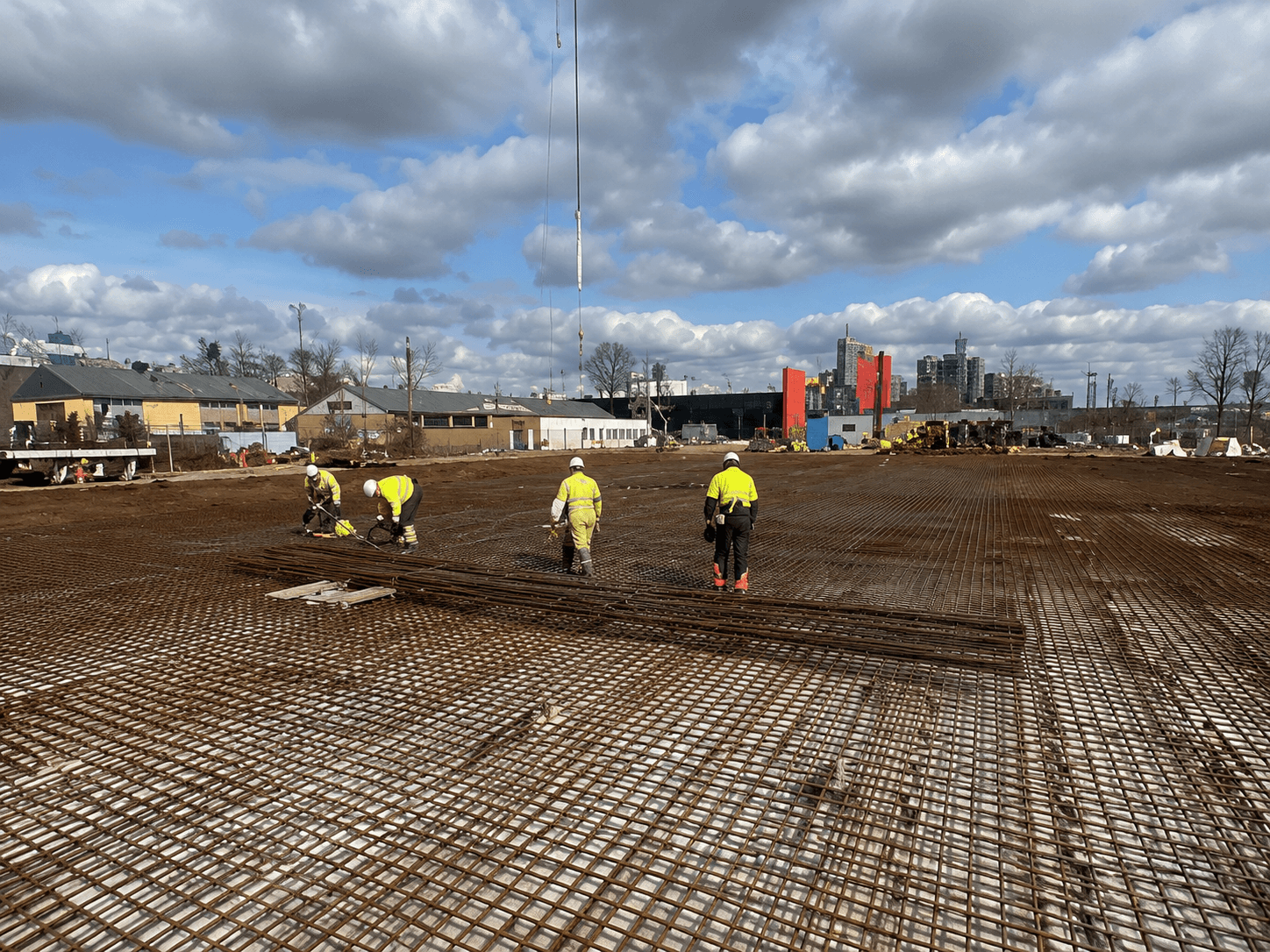

This patented system creates strong and flexible joints within the mat. By unrolling two mats on site in orthogonal directions, a fully interlaced reinforcement mesh is formed — ideal for dynamic conditions and as an alternative to welded mesh.
SteelMaster machinery does not require royalty payments.
Specification
Technical data.
- Wire diameter
- 1.5–3 mm
- Bar diameter
- Up to 32 mm (optional 40 mm)
- Distance between bars
- 75–450 mm
- Max. bar length
- 22 m
- Max. tonnage per rollmat
- 3 t (optional 5 t)
We reserve the right to make design alterations without notice.
System benefits
Advantages of the Spinmaster System.
Safety
Less manual lifting and fewer repetitive tasks improve health and working conditions.
Reduced Manpower
Streamlined installation minimizes the need for cranes, manual handling and labor.
Material Savings
Precise pre-fabrication and customized shapes reduce overlaps and save material.
Consistent Quality
Every roll mat is manufactured with high precision – consistently and to specifications.
Easy Wall Application
The flexible wire system enables use as wall reinforcement without the risk of breakage.
Approved For Earthquake Zones
Ideal for seismic regions where welded connections are restricted or prohibited.
Compatible with all materials
Applicable to all types of rebar – including epoxy-coated, stainless steel, or fibre-reinforced materials.
Flexible bar adjustment
Bars remain partially movable after unrolling, allowing for on-site fine-tuning if needed.
Digital workflow
Seamless Integration – Spinmaster within the digital workflow.
Spinmaster integrates seamlessly into modern planning and production environments, thanks to its compatibility with leading design software and digital control systems.
It works smoothly with ADDA Construct, aSa, Graitec, Lennerts & Partner, among others, enabling easy connection with CAD, BIM, and ERP/MES systems.
Product video
See Spinmaster by SteelMaster Engineering.
Watch the video to see how rebar detailing becomes easier with ADDA Construct.

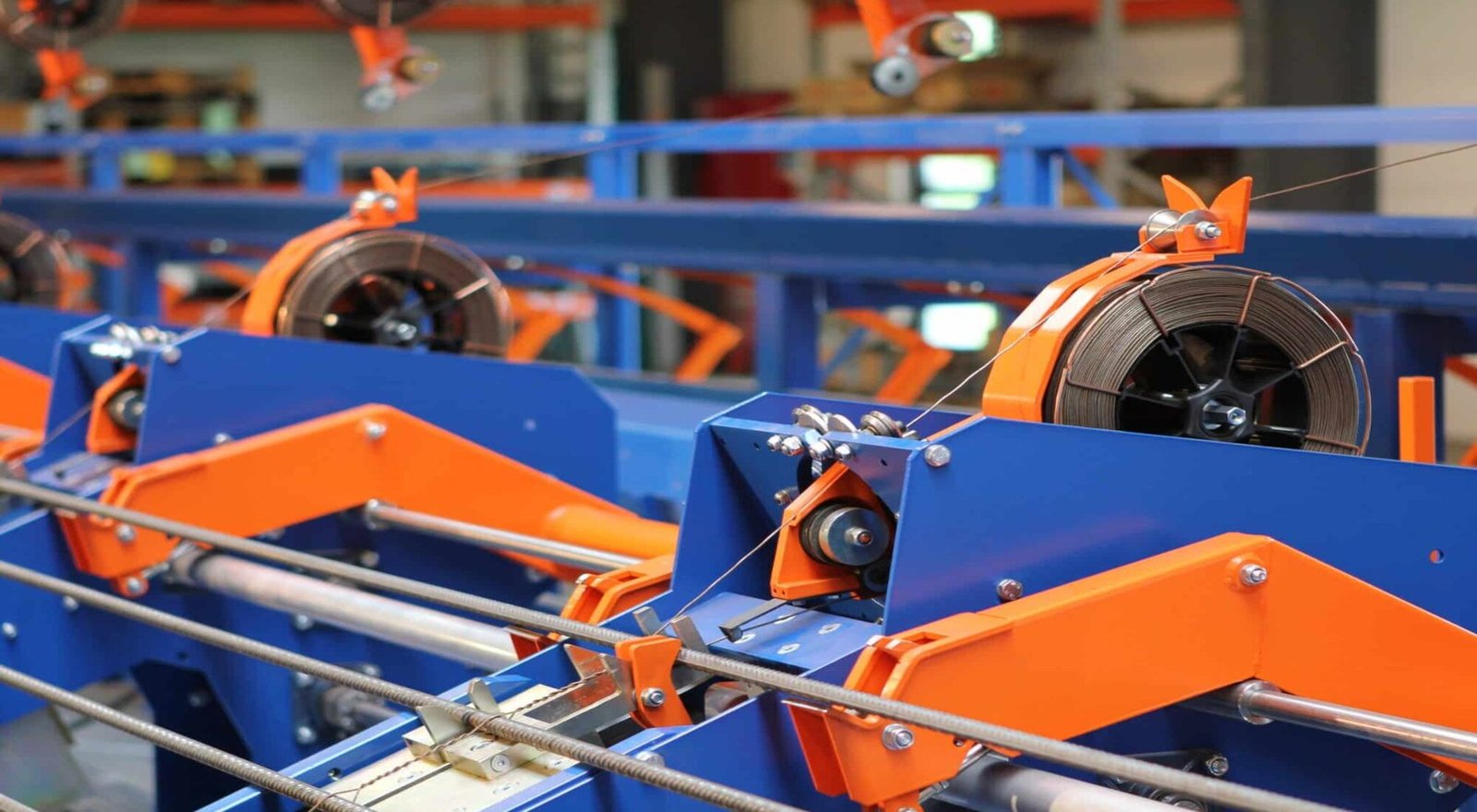

Functionality
Find out more about the Spinmaster's functionality.

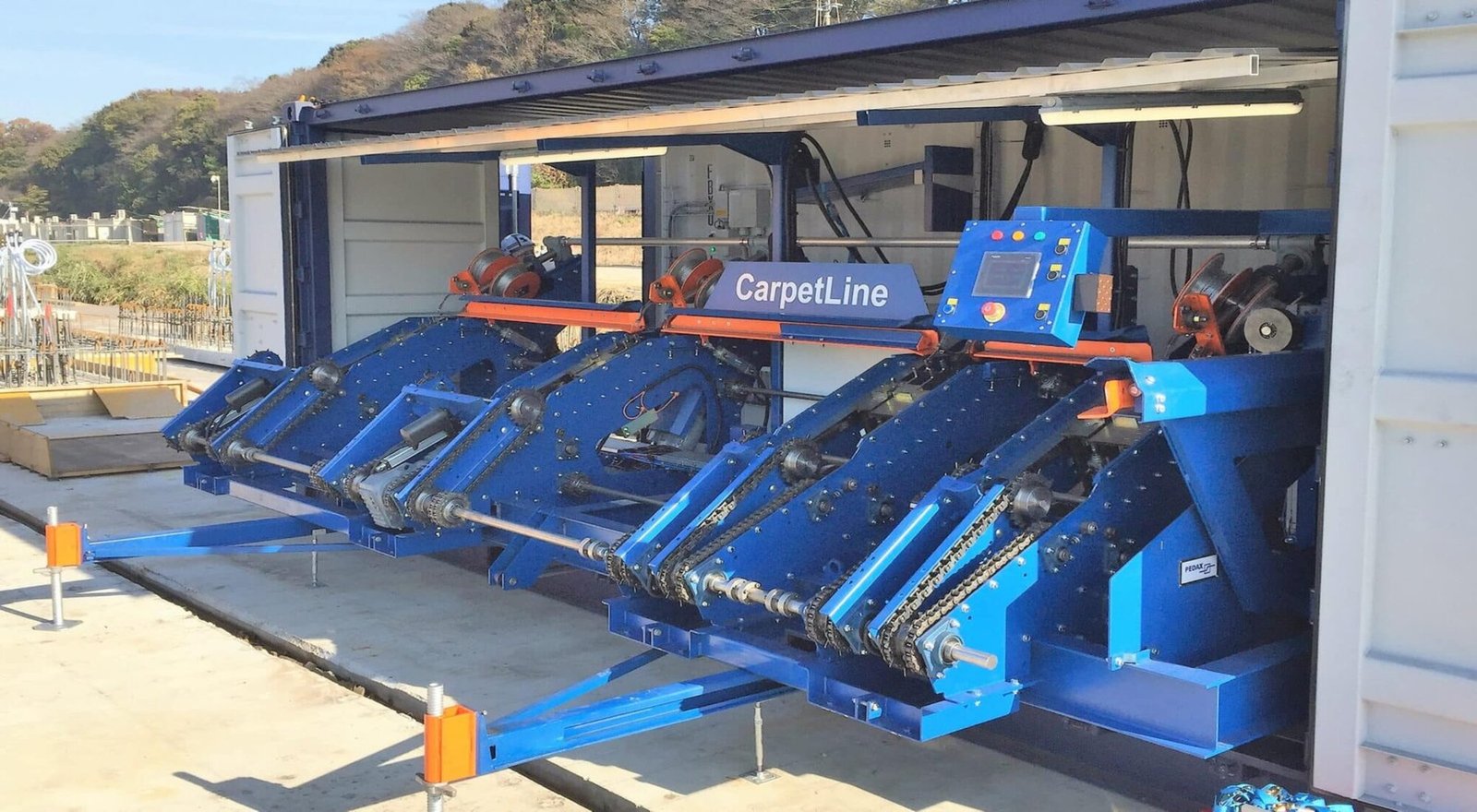

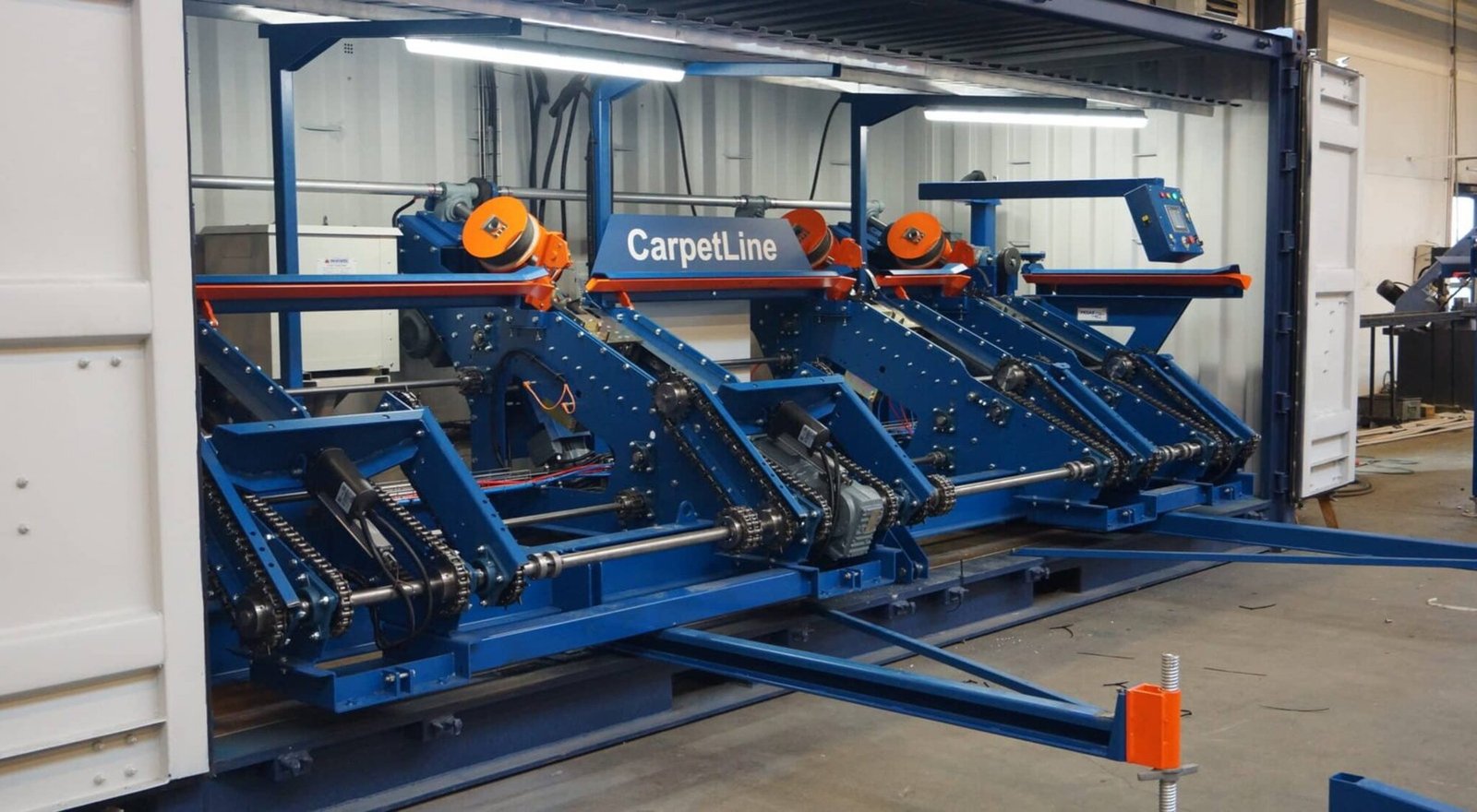

Machine configuration
Machine Capabilities.

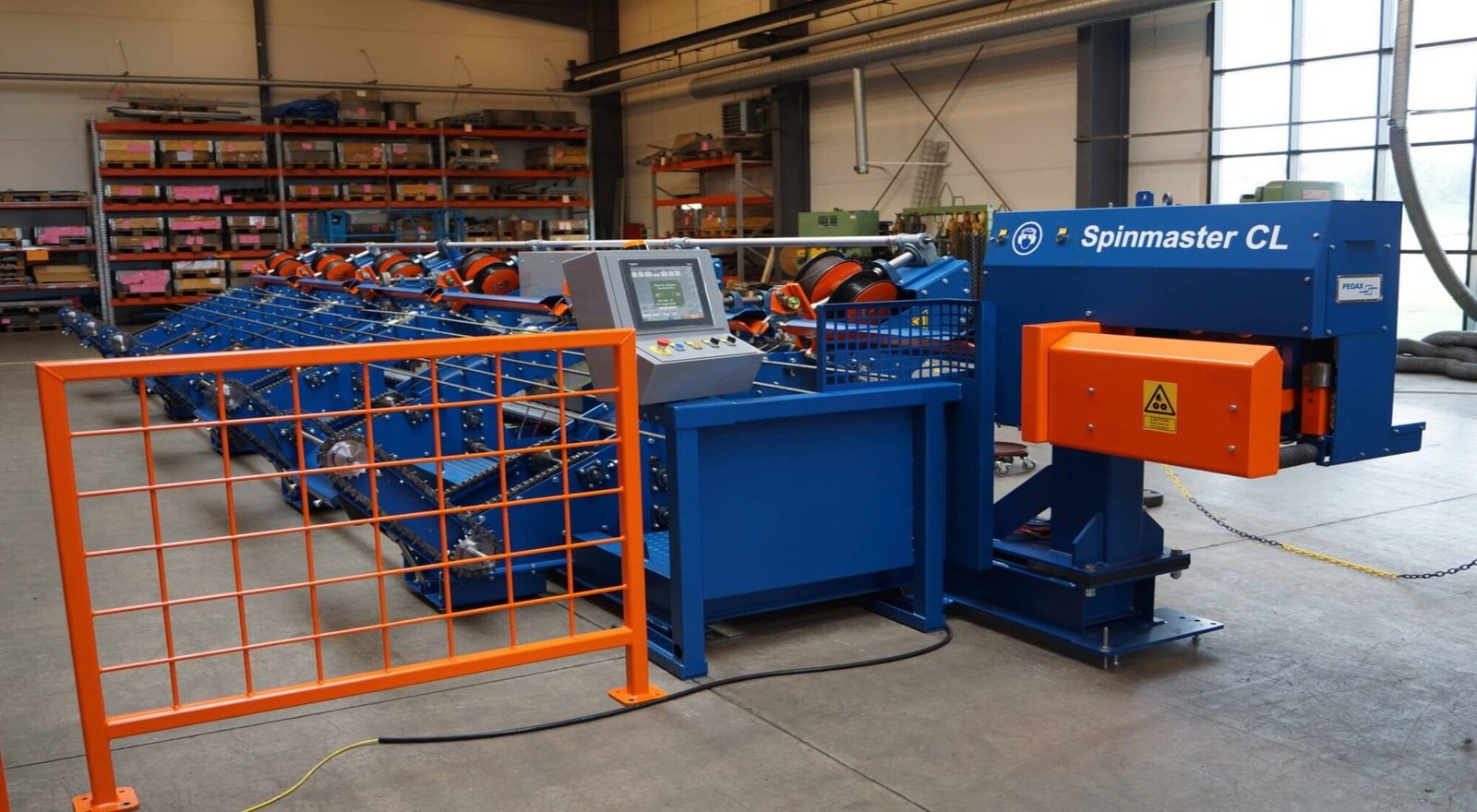

Spinmaster Classic
Feeds material from the right-hand side.

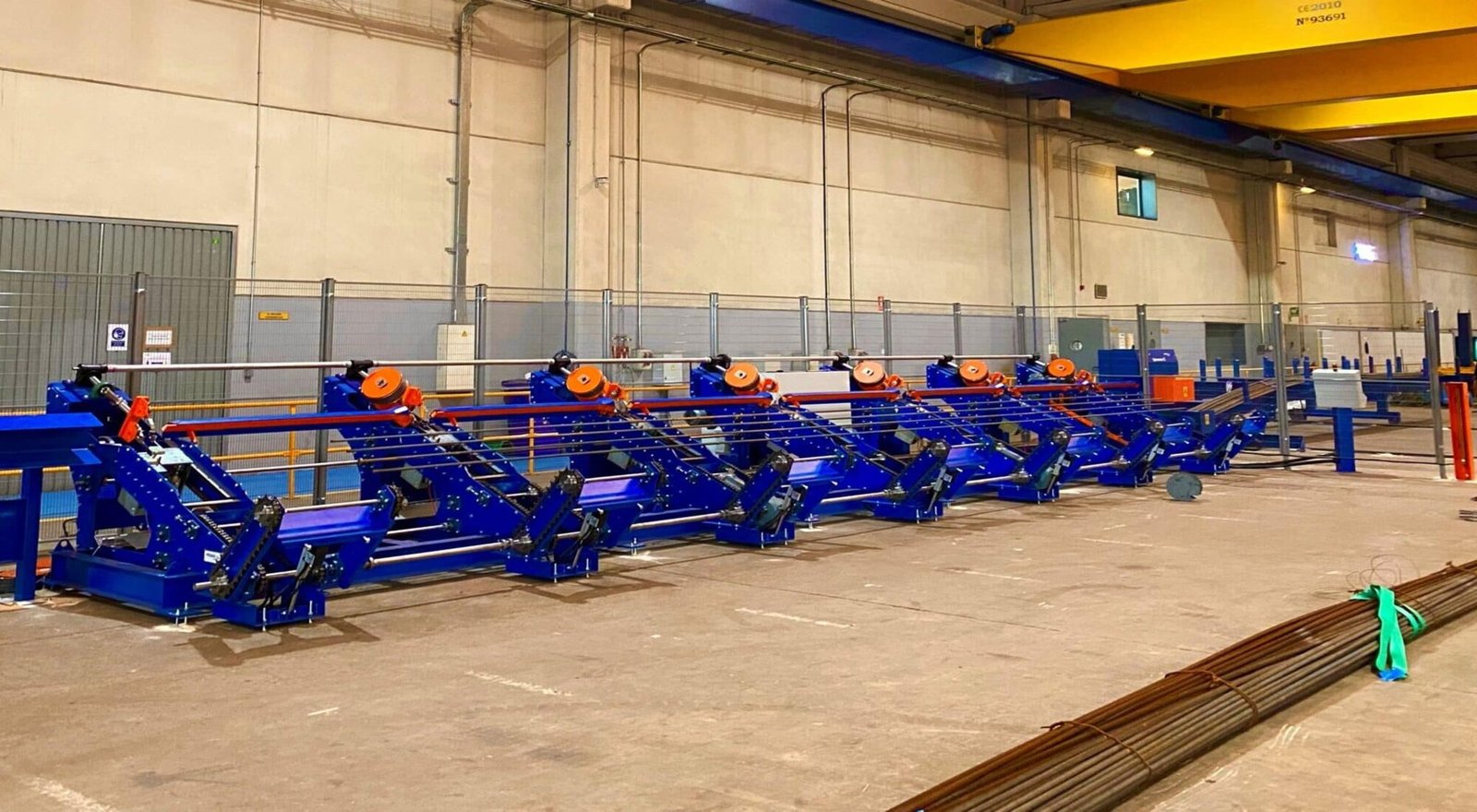

Spinmaster Backfeed
Rear feeding to reduce floor space. Can produce 1 to 3 rollmats simultaneously, depending on bar length.
Optional Add-ons
Feeding from mobile storage
Automates your Spinmaster even further. Raw material handling is reduced to a minimum.
Customer references
Selected Spinmaster references.
Betonstahl Austria
Norsk Stål Norway
Spinmaster
Interested in Spinmaster?
Contact Rebbots to discuss your production requirements and the suitability of the Spinmaster system.
